    Water-Cooled High-Temperature Refrigerated Air Dryer Industrial Compressed Air Dryer

    Product Description

    High-temperature compressed air, which contains moisture and oil, enters the water-cooled pre-cooler and the 'cold-hot compressed air heat exchanger.' This process pre-cools the compressed air, reducing its temperature.

    The cooled air then enters the evaporator of the 'compressed air-refrigerant' system, where it is cooled to a dew point temperature of 2~10℃. During this process, moisture, oil, and some impurities are condensed. The cooled gas and the condensed moisture, oil, and impurities are separated by a gas-liquid separator.

    The moisture and oil are discharged through an automatic drain valve. The dried compressed air is then reheated in the 'cold-hot compressed air heat exchanger,' resulting in dry compressed air that is nearly at room temperature.

    WhatsApp Contact Us
    Product Specifications

    Key Performance Ranges:

    Flow Rate10.5-160m³/min (~371-5650CFM)
    Pressure Range6bar-10bar (~87-145 psi)(Other pressures can be customized)
    Rated Inlet Air Temperature50℃（Max to 80℃）
    Pressure Dew Point2℃-10°C
    Pressure Loss≤0.25bar
    Ambient Temperature32℃ (2℃ – 45℃ Allowed)
    Cooling typeWater-Cooled
    Cooling Water Pressure0.2-0.4Mpa (2-4bar)
    Cooling Water Temperature≤32℃ （2℃-38℃ Allowed）
    RefrigerantR22（R407C, R410a can be customized）

    Design features:

    1.High stability:
    Core components – two units are produced independently. The compressors are mainly madeof well-known brands such as Panasonic, Copeland, Danfoss,Hanbell, etc., and are alsoequipped with well-known brand refrigeration accessories;
    2.Good processing effect:
    Equipped with an independent water distribution system and multiple upgrades, the water distribution efficiency is guaranteed;
    3.Wide range of applicable working conditions:
    Using hydrophilic aluminum foil, and the entire series comes standard with heat exchangers and pre-coolers, making it more adaptable to harsh working conditions;
    4.Intelligent dual system design:
    95~180 cubic meters adopts a 1+1 dual compressor design, matching in size, and automatically starts and stops the No.2 compressor according to the load, which is more energy-saving and in situations where gas consumption fluctuates greatly;
    5.Strong customization ability:
    The Color can be customized, PLC can be selected, dry connection points, Modbus communication, Internet of things communication can be customized according to customer needs.

    Video
    Product Specifications

    Technical Parameters

    Model Capacity (Nm³/min) Voltage（V/Hz） Power  (kW) Cooling water volume(T/h) Water Inlet/Outlet Air Inlet/Outlet Weight (kg) Dimension (L*W*H)
    LY-D75WH 10.5  220/50 1.8  4.5  G1" G2" 160  1240×650×1150
    LY-D100WH 13.5  380/50 2.6  6.0  G1" G2.5" 225  1350×670×1300
    LY-D120WH 17.0  380/50 2.6  6.5  G1" G2.5" 235  1350×670×1300
    LY-D150WH 21.5  380/50 4.6  8.2  G1" DN80 295  1450×700×1510
    LY-D180WH 25.0  380/50 4.6  9.2  G1" DN80 345  1450×700×1510
    LY-D200WH 28.5  380/50 4.6  10.5  G1"/G1/2" DN80 430  1550×850×1595
    LY-D250WH 32.0  380/50 5.4  11  G1/2" DN80 450  1550×850×1595
    LY-D300WH 37.0  380/50 6.9  12  G1/2" DN100 550  1700×850×1740
    LY-D350WH 41.5  380/50 6.9  12.5  G1/2" DN100 600  1700×850×1740
    LY-D400WH 45.0  380/50 8.7  14.5  G1/2" DN100 630  1830×950×1840
    LY-D450WH 50.0  380/50 8.7  15  G1/2" DN100 680  1830×950×1840
    LY-D500WH 55.0  380/50 10.3  17.6  G2" DN¹25 780  2020×950×1650
    LY-D550WH 60.0  380/50 10.3  18.5  G2" DN125 830  2020×950×1650
    LY-D600WH 65.0  380/50 10.3  21  G2" DN125 900  2250×1300×1595
    LY-D700WH 75.0  380/50 11.6  23  G2" DN125 1000  2180×1395×1625
    LY-D800WH 85.0  380/50 13.8  27  G2" DN125 1150  2280×1395×1625
    LY-D900WH 95.0  380/50 15.5  29  G2" DN150 1300  2450×1450×1766
    LY-D1100WH 110.0  380/50 17.0  33  G2" DN150 1400  2450×1540×1850
    LY-D1200WH 120.0  380/50 19.2  35.5  G2"/G24/2" DN150 1500  2600×1540×1895
    LY-D1400WH 140.0  380/50 20.4  45  G21/2" DN200 1750  2600×1750×1950
    LY-D1600WH 160.0  380/50 23.9  52  G21/2" DN200 1950  2650×1950×2100



    Details

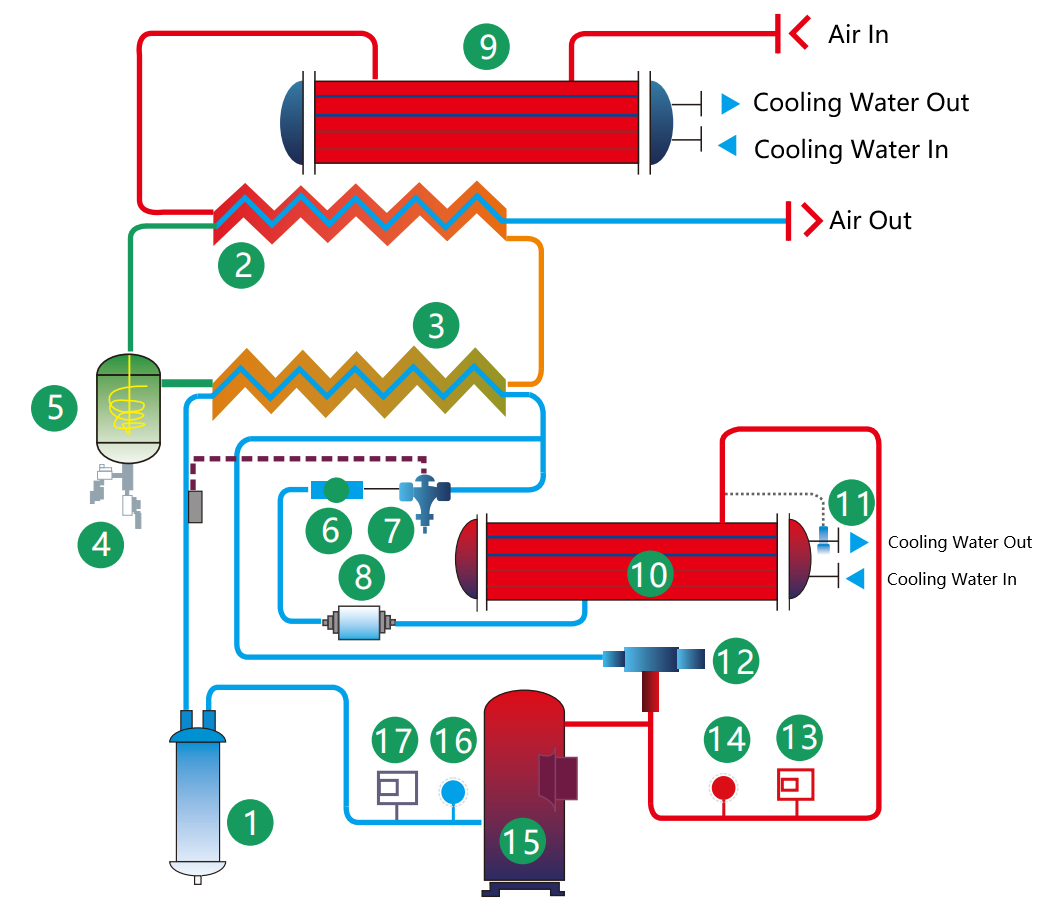

    Schematic diagram of water-cooled high-temperature refrigerated dryer

    1.Refrigerant gas-liquid separator;  2.Heat exchanger;   3.Evaporator;  4.Drain;  5.Steam separator;  6.Windows;  7.Thermal Expansion Valve;  8.Filter drier;  9.Water-cooled precooler;  10.Water-cooled condenser;  11.Water flow regulating valve;  12.Hot gas bypass valve;  13.High voltage protection switch;  14.Refrigerant high pressure gauge;  15.Refrigerant compressor;  16.Refrigerant low pressure gauge;  17.Low pressure protection switch.
