Description du produit
QL-1000 H2 PEM generator is used to generate more than 99.9995% purity hydrogen for gas chromatography (GC) both as a carrier gas and fuel gas for flame ionisation detectors (FID) or flame photometric detectors (FPD). It is ideal equipment to replace regular gas cylinders in lab.QL hydrogen laboratory gas generator is the solution of choice for on-site gas production.
Spécifications du produitLa technologie PEM (membrane échangeuse de protons) représente une innovation de pointe brevetée, reconnue pour sa conception légère, son rendement élevé, ses performances en matière d'économie d'énergie et ses avantages environnementaux. Largement utilisée dans les instruments d'analyse, la PEM constitue une source fiable de gaz pour le gaz vecteur de chromatographie en phase gazeuse (GC), le gaz de réaction de détection de conductivité électrolytique (ELCD) et le gaz de réaction de détection d'émission atomique (AED), garantissant précision et fiabilité dans diverses applications scientifiques et industrielles.
Application of QL-1000 h2 PEM generator
♥GC fuel gas and carrier gas
♥Chromatography make up mas
♥Gas analyzer support gas
♥ELCD (conductivity detector) reaction gas
♥AED (atomic emission detector) of the reaction gas
♥Other pure hydrogen application field
Product Function Characteristics of QL-1000 h2 PEM generator
(1) Electrolysis of pure water (without adding alkali) to produce hydrogen with no corrosion and pollution, and the purity of hydrogen is extremely high.
(2) Cell voltage is low, purification of hydrogen is high, and cycle of changing desiccants is long.
(3) Small electrolytic current, large output of hydrogen and voltage increasing quickly (3 to 5 minutes).
(4) Hydrogenation is produced with stable pressure and output, output of hydrogenation can be controlled according to the requirements, and automatic control technology is perfect and reliable.
(5) Stable hydrogen pressure, stable current output, track with the using hydrogen automatically, and credibly automatic protection technology when there are deaquation, over-pressure and water-jet.
(6) Little noise (the fan needn’t to work when use the generator).
(7) The electrolysis efficiency is high, and power consumption is less.
Vidéo
Spécifications du produit| Modèle | QL-1000 |
| Pression | 0,02 à 0,4 MPa |
| Power | AC 220V/110V 50-60Hz |
| Taux de production | 1000 ML/Min |
| Key Selling Points | High Safety Level |
| Composants de base | Pem Electrolyzer |
| Voltage | AC 220V/110V |
| Pureté | 99.999% |
| Dimension(L*W*H) | 455mm*360mm*352mm |
| Poids | 15 KG |
| high efficiency | High-Effiency |
| Garantie | 1 Year |
Détails

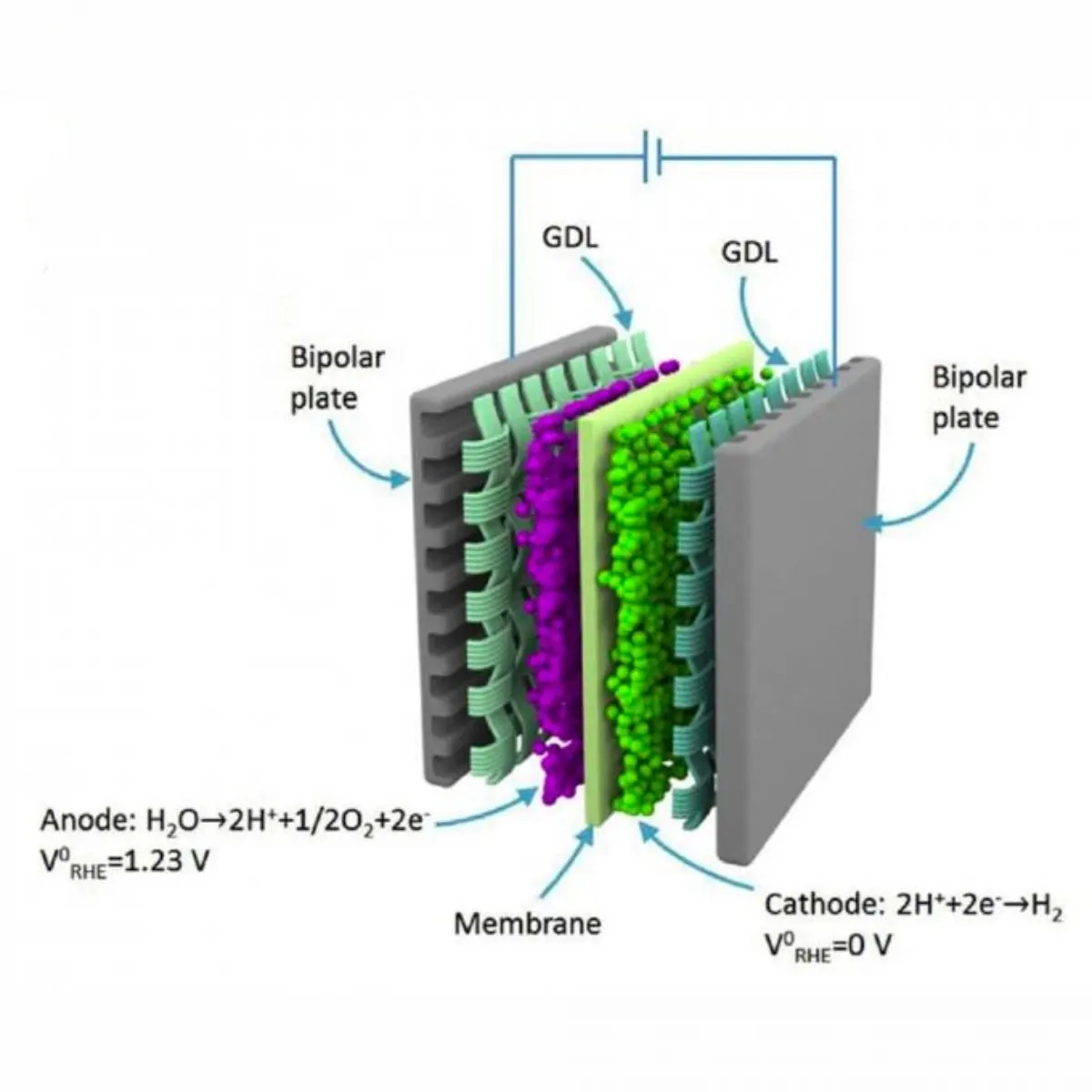

PEM est un type de produit breveté de haute technologie avec un poids léger, une efficacité élevée, une économie d'énergie et une protection de l'environnement.
Le PEM peut être utilisé dans le gaz GC (phase gazeuse) et le gaz vecteur, le gaz de réaction ELCD (détecteur de conductivité) et le gaz de réaction ED (détecteur de spectrométrie d'émission atomique).
Caractéristiques et avantages
Ce produit présente une excellente conductivité électrique, garantissant des performances optimales, ainsi qu'une électroosmose minimale des molécules d'eau au sein de la membrane pour une fonctionnalité optimale. Sa faible perméabilité aux gaz, garantissant un niveau de pureté élevé, et sa stabilité électrochimique supérieure garantissent un fonctionnement fiable. Grâce à ses performances de conversion sec-humide efficaces, il offre une polyvalence accrue, tandis que sa robustesse mécanique garantit durabilité et utilisation à long terme. De plus, sa conception modulaire permet des configurations personnalisables pour répondre aux exigences spécifiques de chaque application.
Nos produits
Générateur d'hydrogène PEM certifié CE QLS-H6 Équipement de production d'hydrogène de grande capacité de qualité industrielle
The QLS-H6 Générateur d'hydrogène PEM is a state-of-the-art system designed to produce high-purity hydrogen through pure water electrolysis. As a member of the QLS series, it functions as a fully automated water electrolysis system utilizing proton exchange membrane (PEM) technology.Capable of generating up to 60.0 cubic meters of hydrogen per hour with a purity of 99.999%, the QLS-H6 is perfectly suited for industrial applications. It offers a maximum hydrogen output pressure of 1.5 MPa (or 30 bar, adjustable to meet customer specifications) and is built for continuous, dependable operation.
Équipement de production d'hydrogène industriel QL-3000 Générateur d'hydrogène à pile à combustible de laboratoire Générateur d'hydrogène PEM H2 0-3050 ML/Min
QL-3000 hydrogen generator adopt SPE/PEM technology-top hydrogen tech in the world. PEM full name is Proton Exchange Membrane. Also called SPE technology ( solid polymer electrolyte).QL series générateur d'hydrogène is our patented products, which are light , highly effective energy-saving and of environmental protection, producing extremely pure hydrogen (>99.9999%) through the electrolysis of pure water.
Équipement de production d'hydrogène industriel QLS-5000T Générateur d'hydrogène PEM certifié CE Débit de sortie 0-5 000 ml/min
QLS-5000T hydrogen generator adopt SPE/PEM technology-top hydrogen tech in the world. PEM full name is Proton Exchange Membrane. Also called SPE technology ( solid polymer electrolyte).QL series générateur d'hydrogène is our patented products, which are light , highly effective energy-saving and of environmental protection, producing extremely pure hydrogen (>99.9999%) through the electrolysis of pure water.
Générateur d'hydrogène PEM de qualité industrielle QL-3000 | Production d'hydrogène par pile à combustible de laboratoire | 0-3050 mL/min
QL-3000 hydrogen generator adopt SPE/PEM technology-top hydrogen tech in the world. PEM full name is Proton Exchange Membrane. Also called SPE technology ( solid polymer electrolyte).QL series hydrogen generator is our patented products, which are light , highly effective energy-saving and of environmental protection, producing extremely pure hydrogen (>99.9999%) through the electrolysis of pure water.
QL-300 Industrial Hydrogen Production Equipment 300ml/min H2 Hydrogen Generator PEM Technology
Hydrogen is used in the laboratory for a variety of lab applications such as Gas Chromatography (GC) as fuel or carrier gas and ICP-MS as a collision gas.
In the chemical industry to synthesise ammonia, cyclohexane and methanol and in the food industry for hydrogenation of oils to form fats.
In industry, H2(g) is produced on a large scale by a process called steam reforming, to separate carbon and hydrogen atoms from hydrocarbon fuels.
Also it can be used in the area of chemical industry hydrogen generator, reduction protection, metal welding, smelting, power station cooling, hydrogen station producing hydrogen, surface protection, spacecraft, submarine, heavy hydrogen, heavy oxygen water, etc.

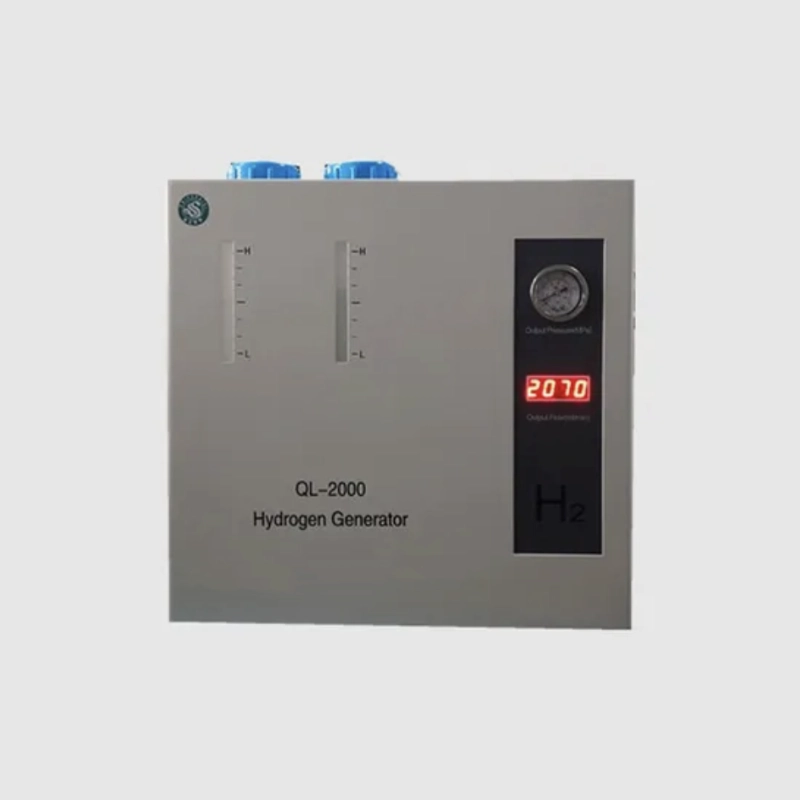

QL-2000 Industrial Hydrogen Production Equipment For Lab PEM H2 Hydrogen Electrolyzer Generator
